Web interface

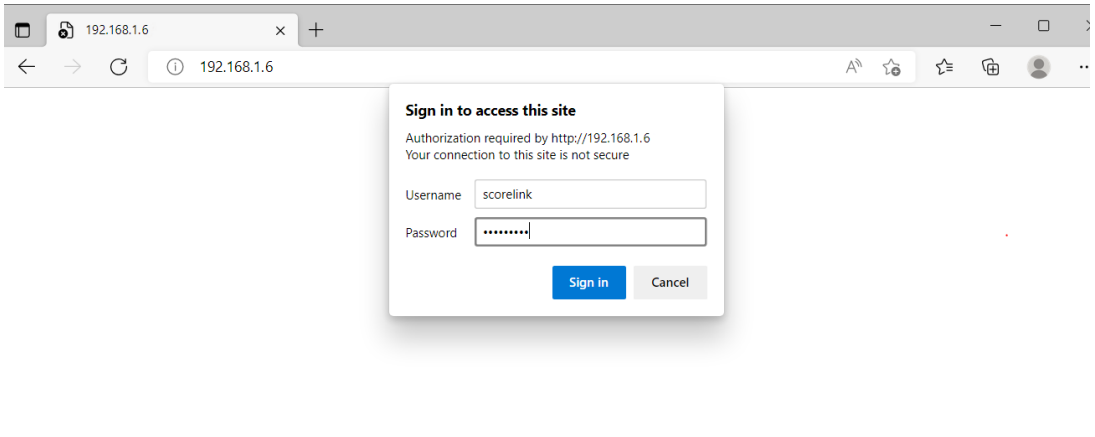

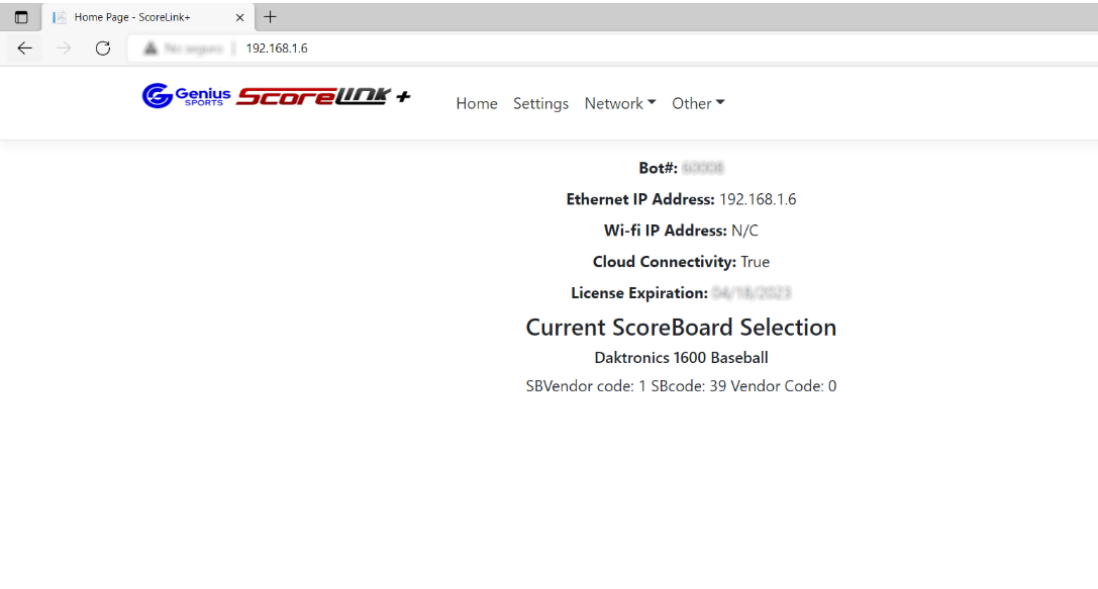

Home page summarizes the current state of the ScoreLink+ by reporting its:

• Bot number
• Ethernet IP Address
• Wi-Fi IP Address
• Cloud Connectivity Status
• License expiration
• Current Scoreboard Selection
  • Scoreboard Manufacture
  • SBVendor Code (used internally and by Tech Support)
  • SBCode
  • Vendor Code

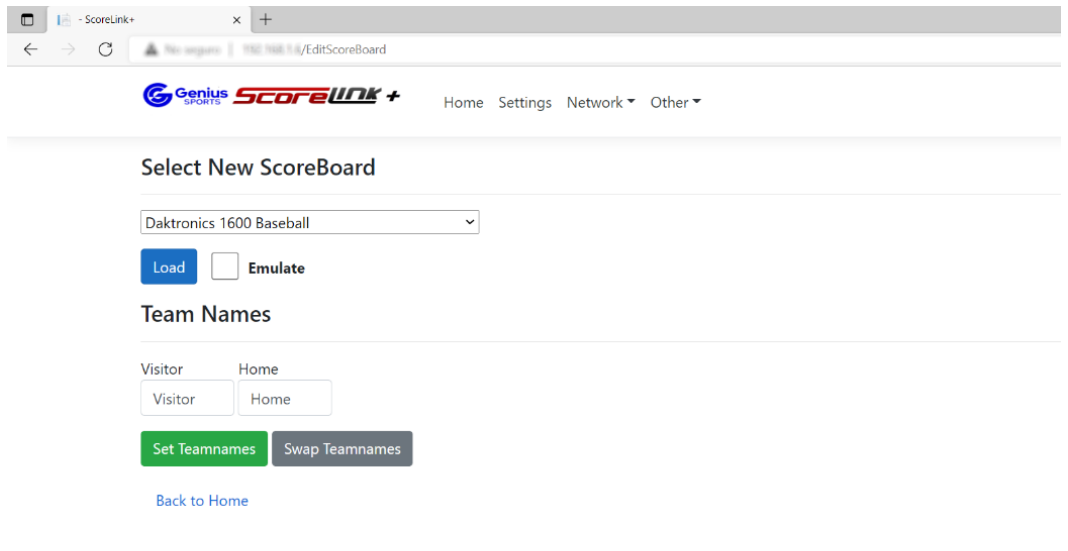

On this page it is possible to select the scoreboard from the dropdown menu.

• Clicking on “Load” will configure the device with the scoreboard configuration and will open the home page displaying the new scoreboard controller information.
• To set the team names type the names in the text boxes and click on “Set Teamnames.”
• The “Swap Teamnames” button can be used to swap the names.

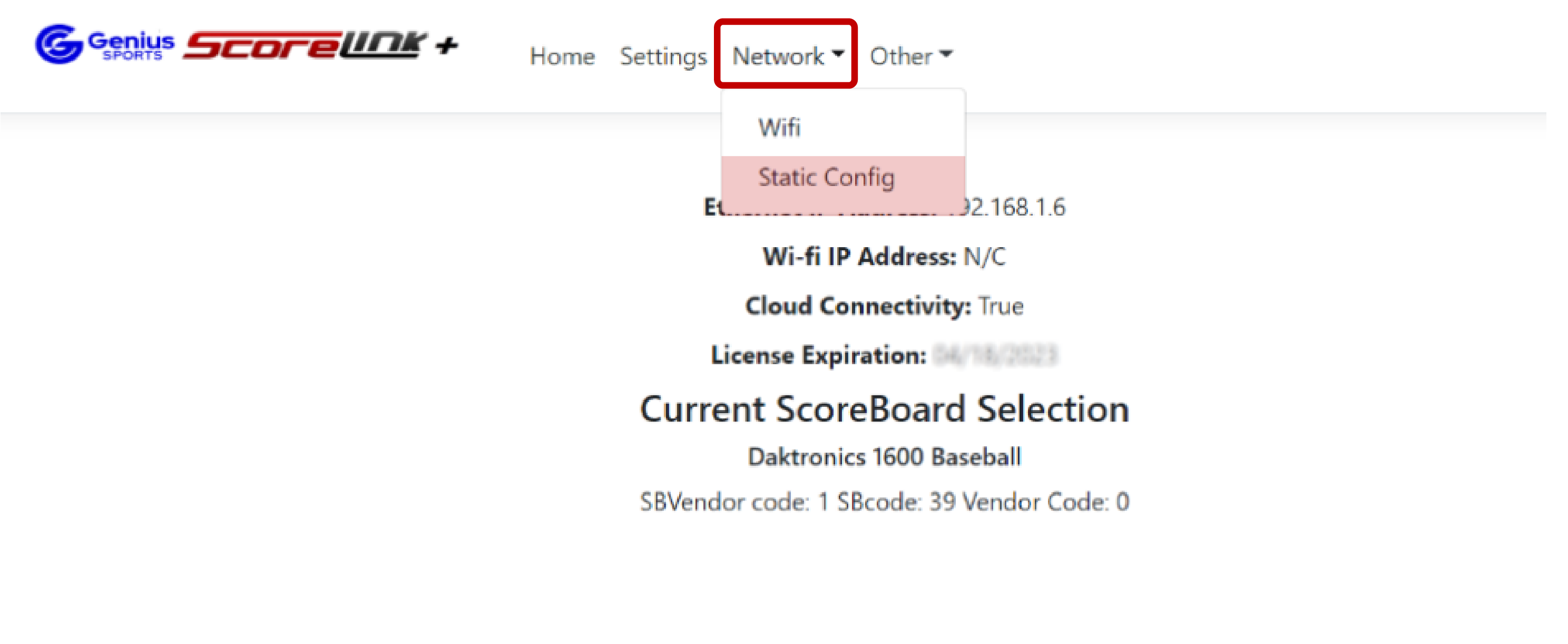

The Network tab allows to set a Wi-Fi or static IP configuration.

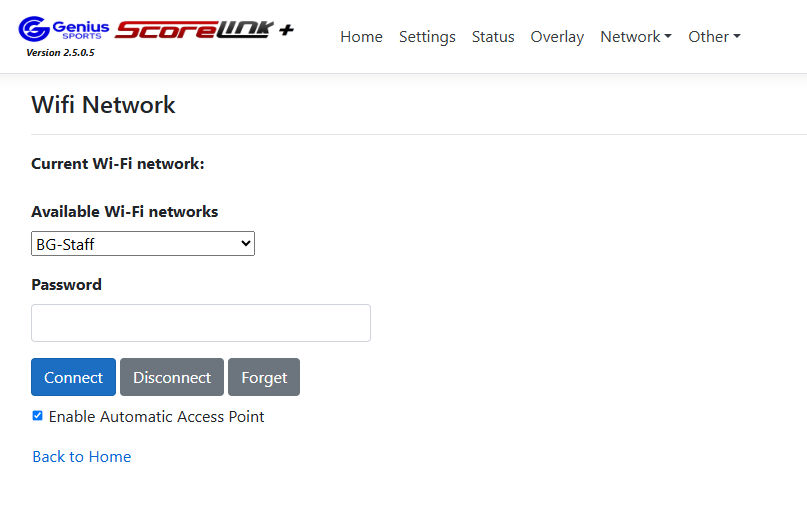

The Wi-Fi page will display a list of available Wi-Fi networks. To add a new Wi-Fi network:

1️⃣ Unfold Available Wi-Fi networks drop-down list.
2️⃣ Select the desired network from the list.
3️⃣ Enter the password for the network.
4️⃣ Click on “Connect” to save the network and start the connection.

• “Forget” button can be used to forget any network previously saved and selected from the dropdown menu.
• “Disconnect” button can be used to disconnect from the previously saved network. The network will be remembered.

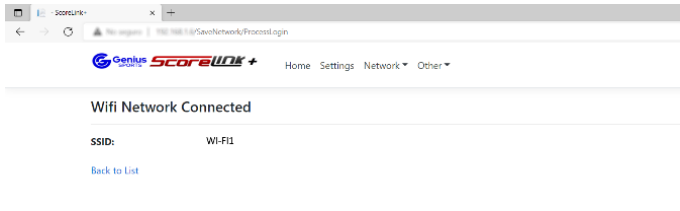

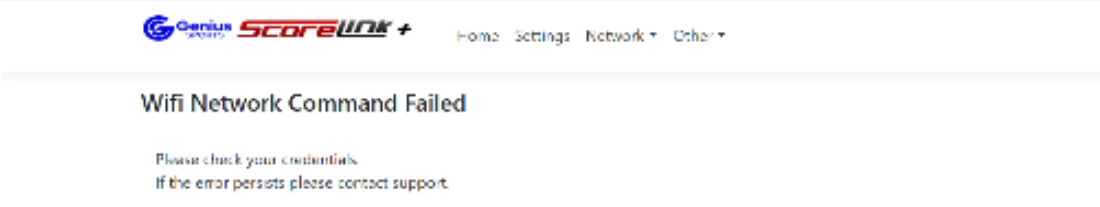

Once connected, the page will show a confirmation message:

The Network tab allows to set a Wi-Fi or Static IP Configuration.

Under Static Config it is possible set the unit to have a specific IP address and use a specific Gateway and DNS. For Static Config:

1️⃣ Tick “Static”.
2️⃣ Fill in the required information in the fields.
3️⃣ Click on “Commit Changes” and wait for it to finish and reboot.

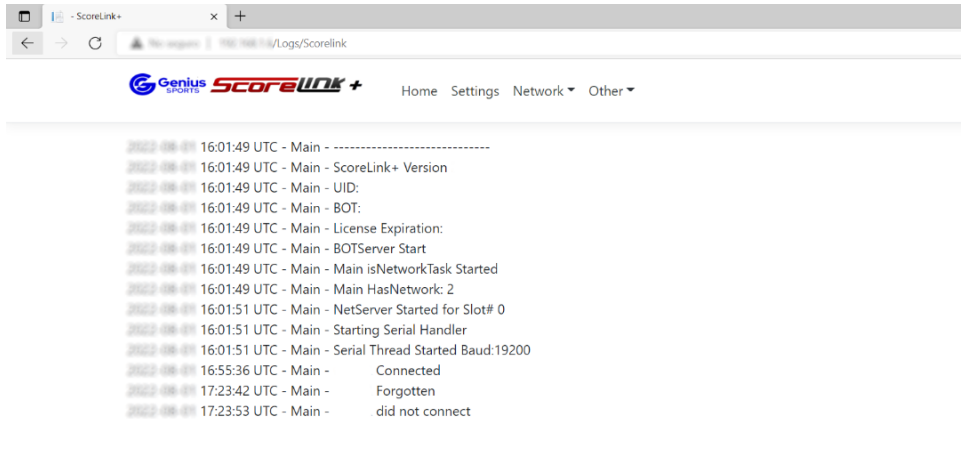

This page displays logs of the ScoreLink+ application:

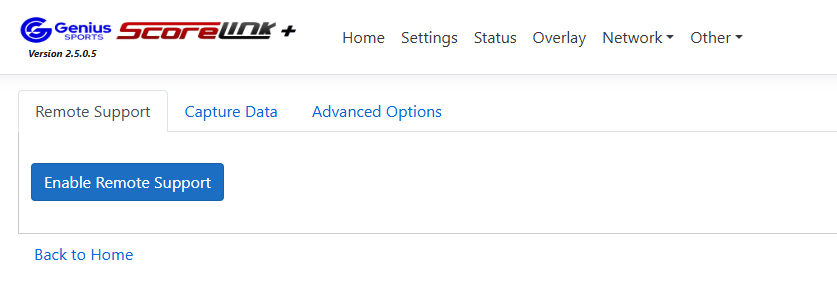

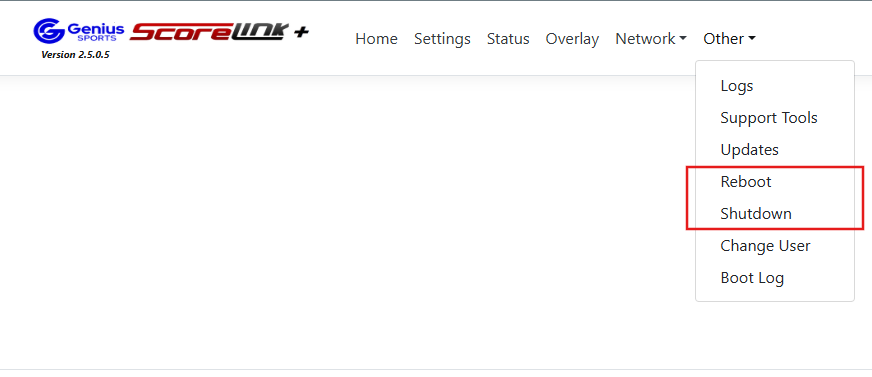

• Remote Support: allows us to use Azure to remote into the bot.
• Capture Data: Raw Data Captures.

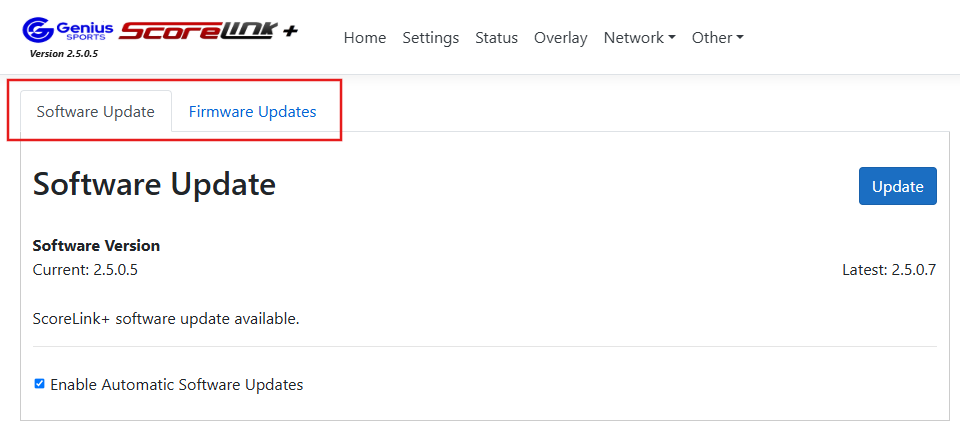

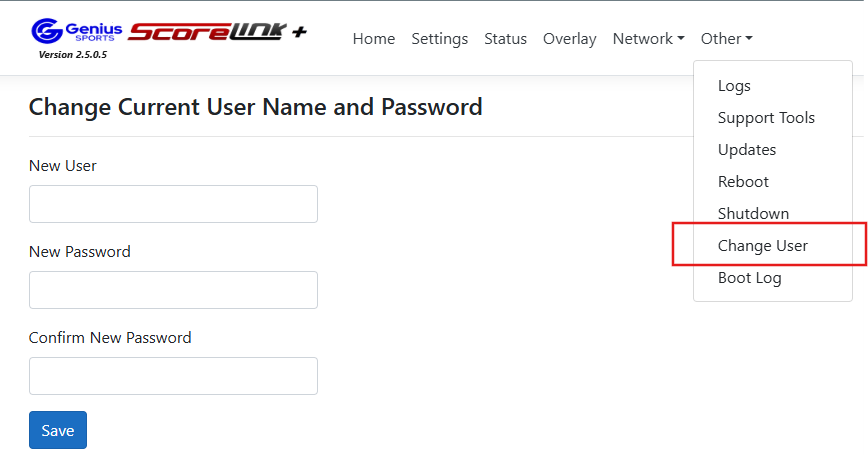

• Advanced Options: Turn Emulator on/off
