    ScoreHub II descriptiton

    The ScoreHub II is an advanced piece of hardware that looked to replace the ScoreHub cube.

    The idea of this box is to decode data locally with the help of ScoreConnectIII software, but with better usability, as ScoreHub II can be used like a normal PC with the internet connection.

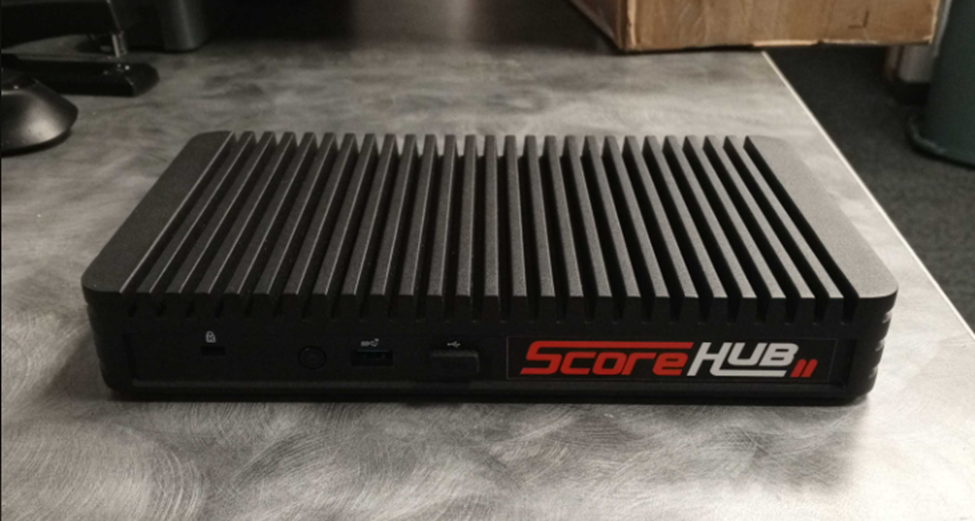

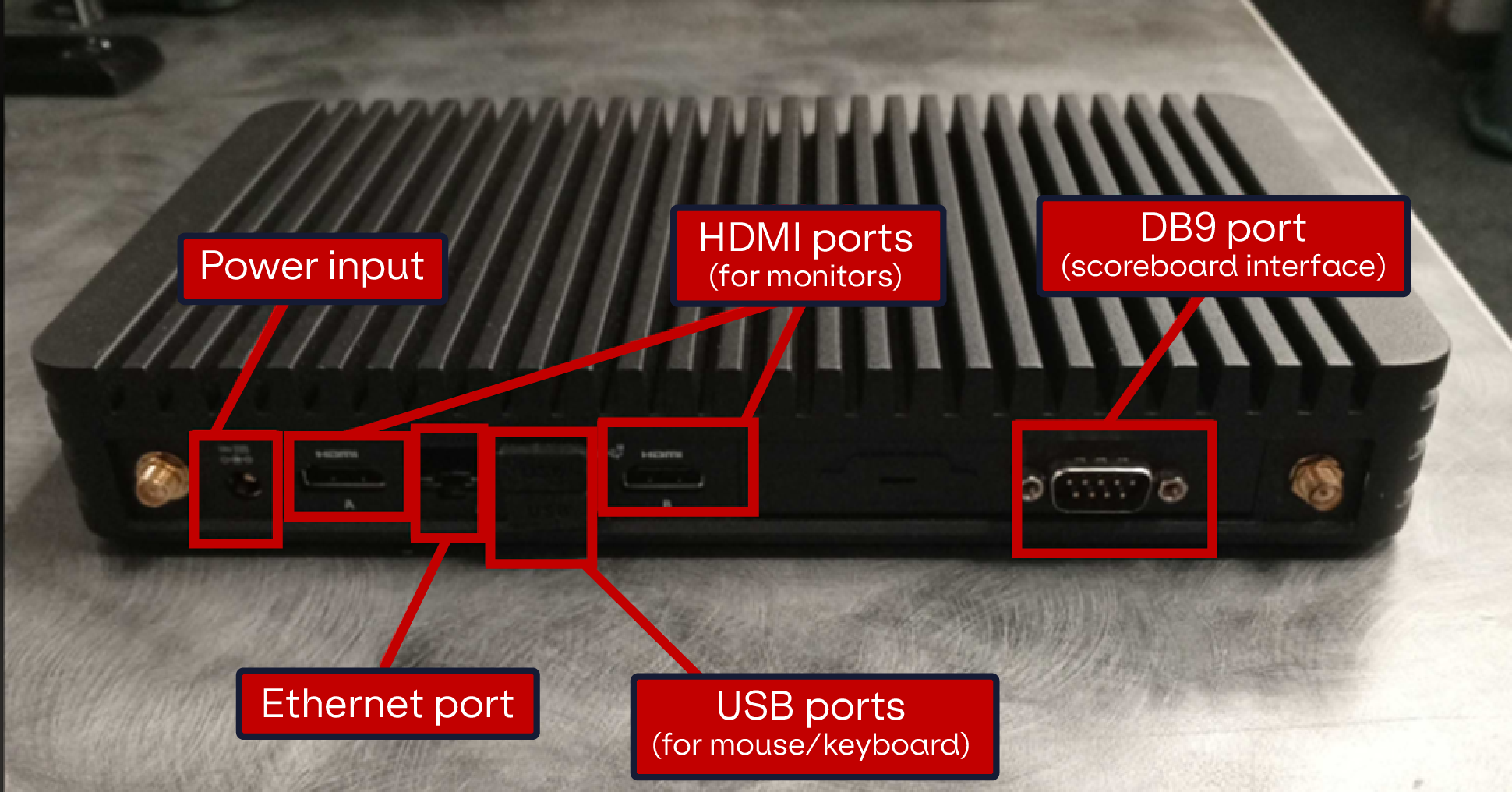

    This device consists of a black box that has HDMI, USB and DB9 ports. It can be connected to a monitor, a mouse and a keyboard.

    blobid0.png Img031912.png

    Configuring the ScoreHub II

    To be able to manage the device, plug a monitor, a mouse and a keyboard.

    1. Create an account or login to your existing one on Sportzcast.net website.

    ⚠️ If you sign up, make sure to log out and then back in to bypass the “Authentication error” message you get when you sign in for the first time.

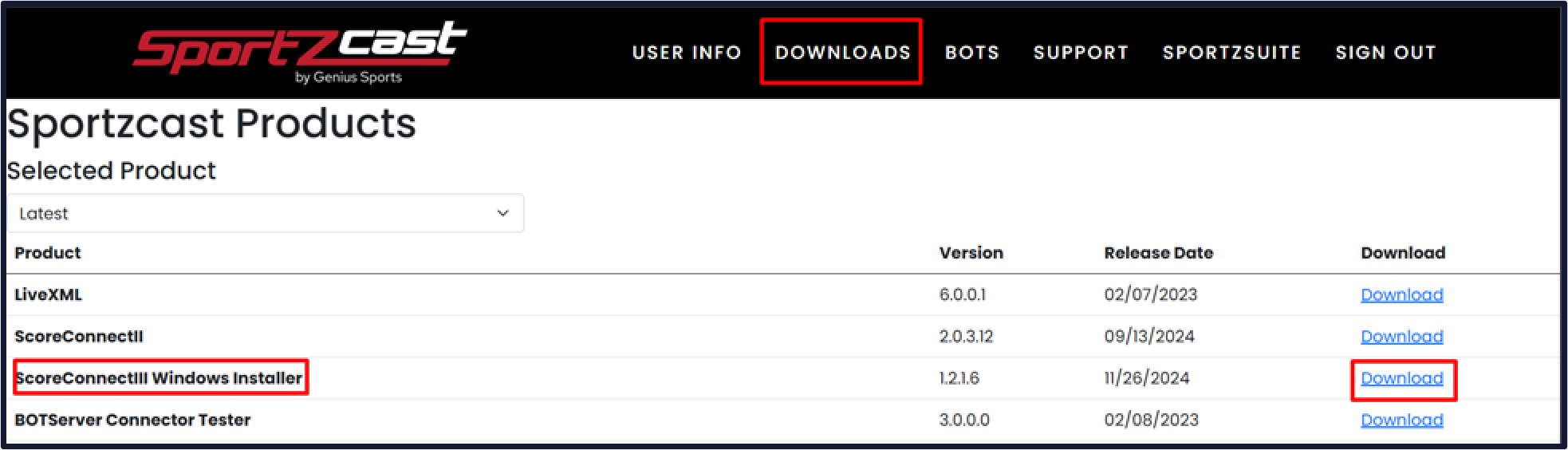

    2. Go to “DOWNLOADS” and look for the ScoreConnectIII windows installer:


    3. Open the ScoreConnect.exe file that was downloaded.

    4. Follow the steps indicated on the Wizard to install the software.

    5. Open ScoreConnectIII. It can be done by going to a web browser and typing “localhost:5000”.

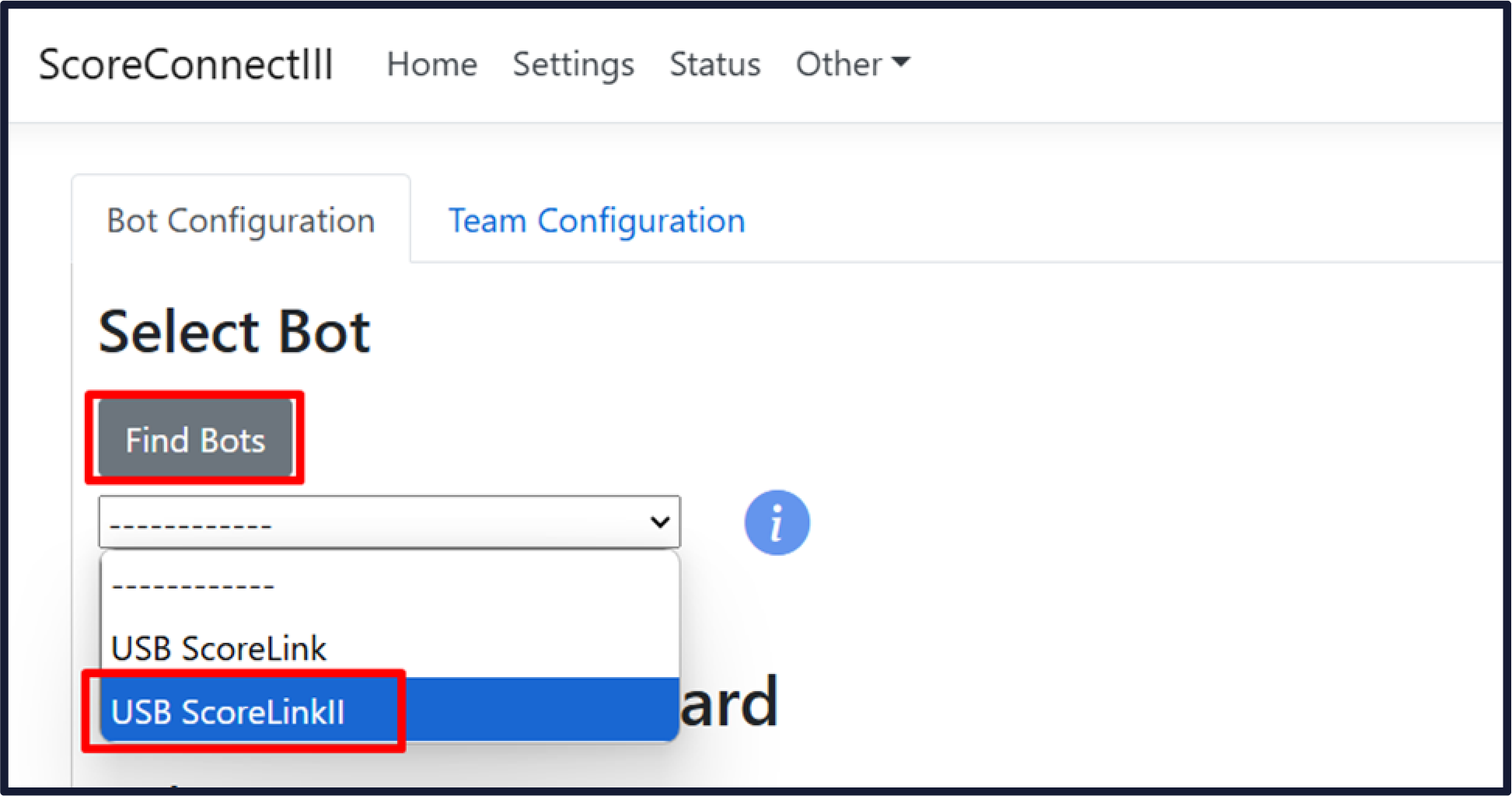

    6. Go to the “Settings” tab and click on “Find Bots”.

    7. Once the scan is complete, select the "USB ScoreLinkII" option.


    8. In the Configure Scoreboard panel, select:

    • the appropriate scoreboard type under "Vendor";
    • the desired sport under "Sport";
    • the connection type under "Connection Type".

    9. On the Configure Decoding panel, select the Decoding type. It will work only with Local Connection. Locally: Send raw data to the Local Server in ScoreConnectIII.

    10. Click on “Submit” to load the configuration to the ScoreLink device.
