The Lantronix bots will not work with the Nevco controller, there is a hardware incompatibility that prevents that setup from working.

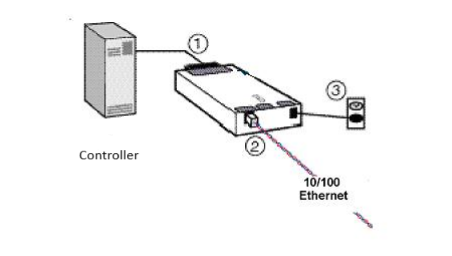

Installation
1. Connect a controller using the 25 pin cable to your unit.
2. Connect an Ethernet cable to the RJ45 port.
3. Supply power to your unit using the power supply that was included in the
packaging.
Note: The required input voltage is 9-30 VDC or 9-24 VAC
(1 W maximum).
LEDS Troubleshoot
The unit contains the following leds:
• Power
• 10/100 Mb Link
• 10/100 Activity
• Diagnostics
• Status Channel 1
Simultaneously lit red and green LEDs means something is wrong. If the red LED is lit or blinking, count the number of times the green LED blinks between its pauses. The following table explains the LED functions.
| SERIAL LEDS | MEANING |
| 10/100 Mb Link steady green. | Valid network connection. |
| 10/100 Activity blinking. | Network packets transmitting and receiving. |
| Diagnostic steady red and status blinking green. |
3 blinks = Network controller error. 4 blinks = EEPROM checksum error. 5 blinks = Duplicate IP address on network. |
| Diagnostic blinking red and Status blinking green. | 5 blinks = No DHCP response. |
| Status steady green. | Serial port not connected to network. |
| Status blinking green. | Serial port connected to network. |
