OES ISC9000
Requirements
1. A ScoreLink II with power and ethernet connection. If your device is POE (Power Over Ethernet), a power adapter will not be needed.
2. An OES controller on and ScoreLink II is wired connected it. There are 2 outputs in the rear of the controller for 'Game Out'. One is a DB-9 Pin Male port and the second one is a XLR port. For the port you choose to use, you need a specific cable as well. Please see pictures below (Image 1 is for DB-9 Pin Male Port and Image 2 is for XLR Port).
Back of OES ScoreBoard Controller
1.
2.
Null Modem Cable XLR to DB9 Female Cable
3. On a computer, install the latest version for NCAA LiveStats.
Configuration
It is necessary to check the 'Server' and 'Power' LEDs on the ScoreLink II. Both LEDs must be in solid green. If the 'Server' LED keeps changing between blue and green, it is possible that due to network restrictions, the ScoreLink II can't reach the internet, to establish a connection with our server. Here it is important to involve your IT department to allow the connection to the ScoreLink II and making sure TCP ports 1400 to 1410 are open on the network.
LiveStats Configuration
1. Once you have all physical connections confirmed, open up NCAA LiveStats Application. If it requires any updates, please complete them before the next step.
2. Please enter the Game Key that is provided by Genius Sports and click on 'Next'.

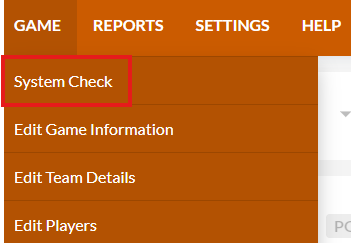

3. On the top bar menu, click on 'Game' then 'System Check'.

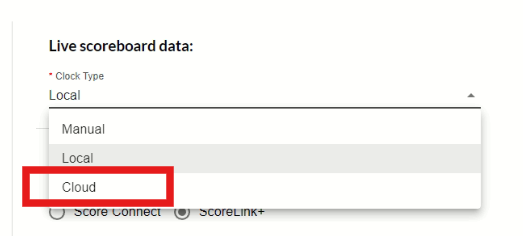

4. On 'Live scoreboard data' for 'Clock Type' dropdown menu, select 'Cloud'.

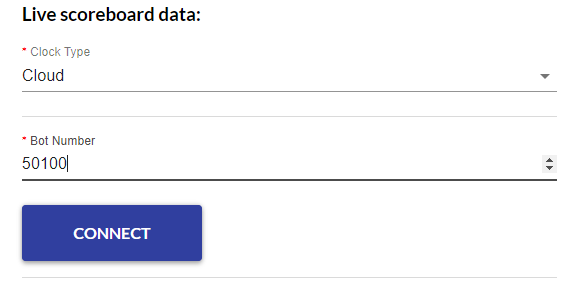

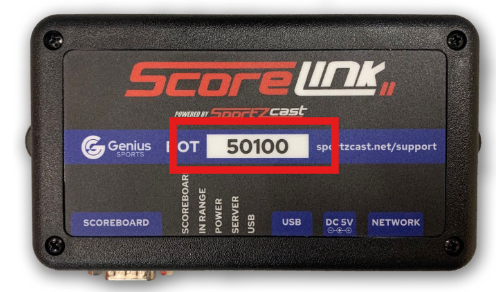

5.On the 'Bot Number field', enter the ScoreLink II Bot Number located at the top of the device, and click on 'CONNECT'.
6. Once you see the button changed to 'DISCONNECT', it means LiveStats successfully synched up with the automated clock. Now, at the top right corner click on 'Save & Confirm'.
7. NCAA LiveStats is ready to go.
If you find any issues or have any questions, you can contact Support at sportzcastcs@geniussports.com or call 321-888-3800.
If you require any assistance days prior to game day, please use the following Booking Link, to schedule a session with our Technical Support team:
