Fairplay MP-60 and MP-70
Requirements
1. A ScoreLink II with power and ethernet connection. If your device is POE (Power Over Ethernet), a power adapter will not be needed.
2. A Fairplay Controller is on and ScoreLink II is connected either by wire or radio wireless transmission. If you are connecting ScoreLink II by wire, there is one ¼” stereo phone jack on the rear of the controller for 'ScoreBoard'. You can connect the ScoreLink II to the port using the red TRS cable.

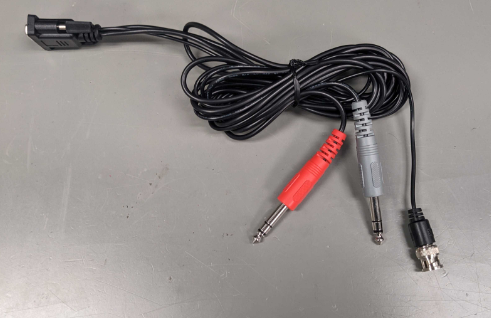

TRS Cable
3. On the LiveStats PC, install the latest version for NCAA Livestats.
Configuration
It is necessary to check the 'Server' and 'Power' LEDs on the ScoreLink II. Both LEDs must be in solid green. If the 'Server' LED keeps changing between blue and green, it is possible that due to network restrictions, the ScoreLink II can't reach the internet, to establish a connection with our server. Here it is important to involve your IT department to allow the connection to the ScoreLink II and making sure TCP ports 1400 to 1410 are open on the network.
LiveStats Configuration
1. Once you have all physical connections confirmed, open up NCAA LiveStats Application. If it requires any updates, please complete them before the next step.
2. Please enter the Game Key that is provided by Genius Sports and click on 'Next'.

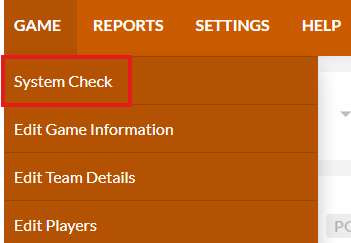

3. On the top bar menu, click on 'Game', then on 'System Check'.

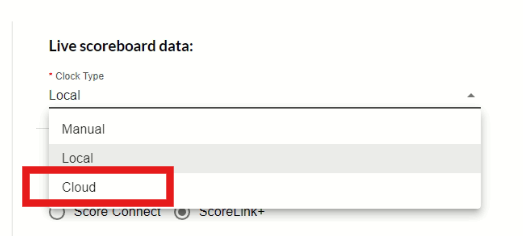

4. On 'Live scoreboard data' for 'Clock Type' dropdown menu, select 'Cloud'

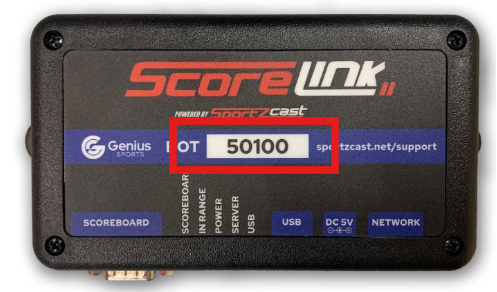

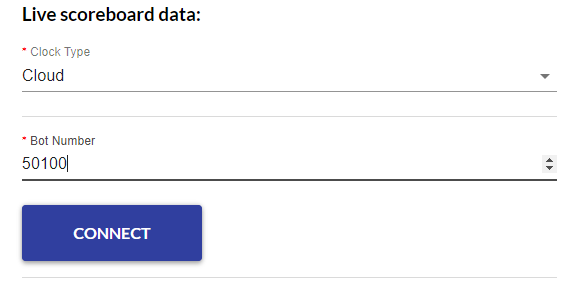

5.On the Bot Number field, enter the ScoreLink II BOT number located at the top of the device, and hit on 'CONNECT'.
6. Once you see the button changed to 'DISCONNECT', it means LiveStats successfully synched up with the automated clock. Now, at the top right corner click on 'Save & Confirm'.
7. NCAA Livestats is ready to go.
If you find any issues or have any questions, you can contact Support at sportzcastcs@geniussports.com or call 321-888-3800.
If you require any assistance days prior to game day, please use the following Booking Link, to schedule a session with our Technical Support team:
https://outlook.office365.com/book/bookings-NCAASportzcastBOTtest@geniussports.com/
