Daktronics All Sports 5000
Requirements
1. A ScoreLink II with power and ethernet connection. If your device is POE (Power Over Ethernet), a power adapter will not be needed.
2. A Daktronics controller is on and ScoreLink II is connected either by wire or radio wireless transmission. If you are connecting ScoreLink II by wire, there are three ¼” stereo phone jacks on the rear of the Daktronics controller, labeled J1-J3 and you can connect the ScoreLink II to any of these with our grey stereo TRS cable.
Back of Daktronics ScoreBoard Controller

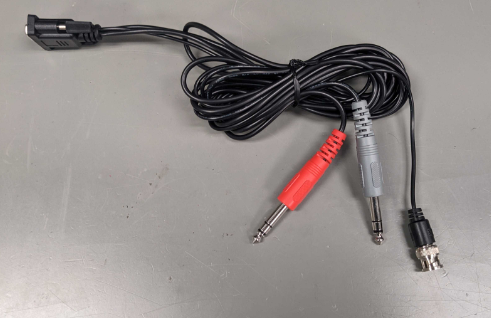

TRS Cable
3. On a computer, install the latest version for NCAA Livestats.
Configuration
It is necessary to check the 'Server' and 'Power' LEDs on the ScoreLink II. Both LEDs must be in solid green. If the 'Server' LED keeps changing between blue and green, it is possible that due to network restrictions, the ScoreLink II can't reach the internet, to establish a connection with our server. Here it is important to involve your IT department to allow the connection to the ScoreLink II and making sure TCP ports 1400 to 1410 are open on the network.
LiveStats Configuration
1. Once you have all physical connections confirmed, open up NCAA LiveStats Application. If it requires any updates, please complete them before the next step.
2. Please enter the Game Key that was provided by Genius Sports and click on 'Next'.

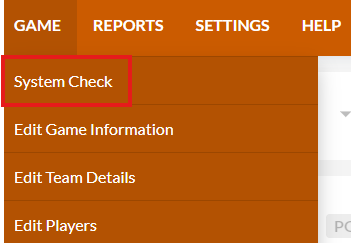

3. On the top bar menu, click on 'Game' then 'System Check'.

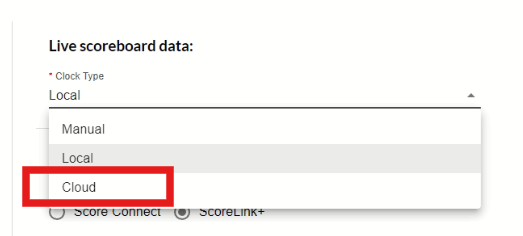

4. On 'Live scoreboard data' for 'Clock Type' dropdown menu, select 'Cloud'.

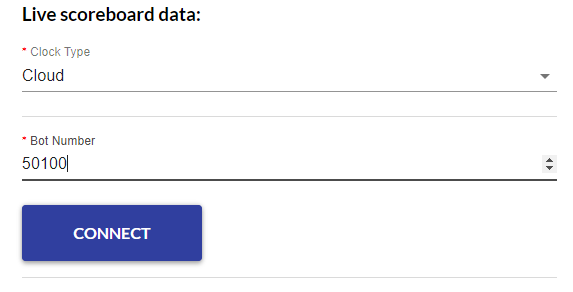

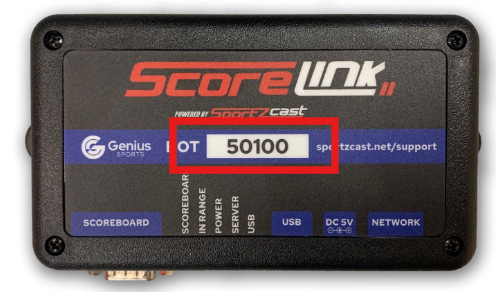

5. On the Bot Number field, enter the ScoreLink II BOT number located at the top of the device, and hit on 'CONNECT'
6. Once you see the button changed to 'DISCONNECT', it means LiveStats successfully synched up with the automated clock. Now, at the top right corner click on 'Save & Confirm'.
7. NCAA LiveStats is ready to go.
If you have any doubts or concerns with the steps above, don't hesitate to contact support at
sportzcastcs@geniussports.com or you can call 3218883800
