Once you have received your Scorehub device and are ready to install here are the steps that will get you started using your Scorehub.
-
Hook up the Scorehub with the supplied power adapter click the power button on the front and make sure it stays solid blue
-

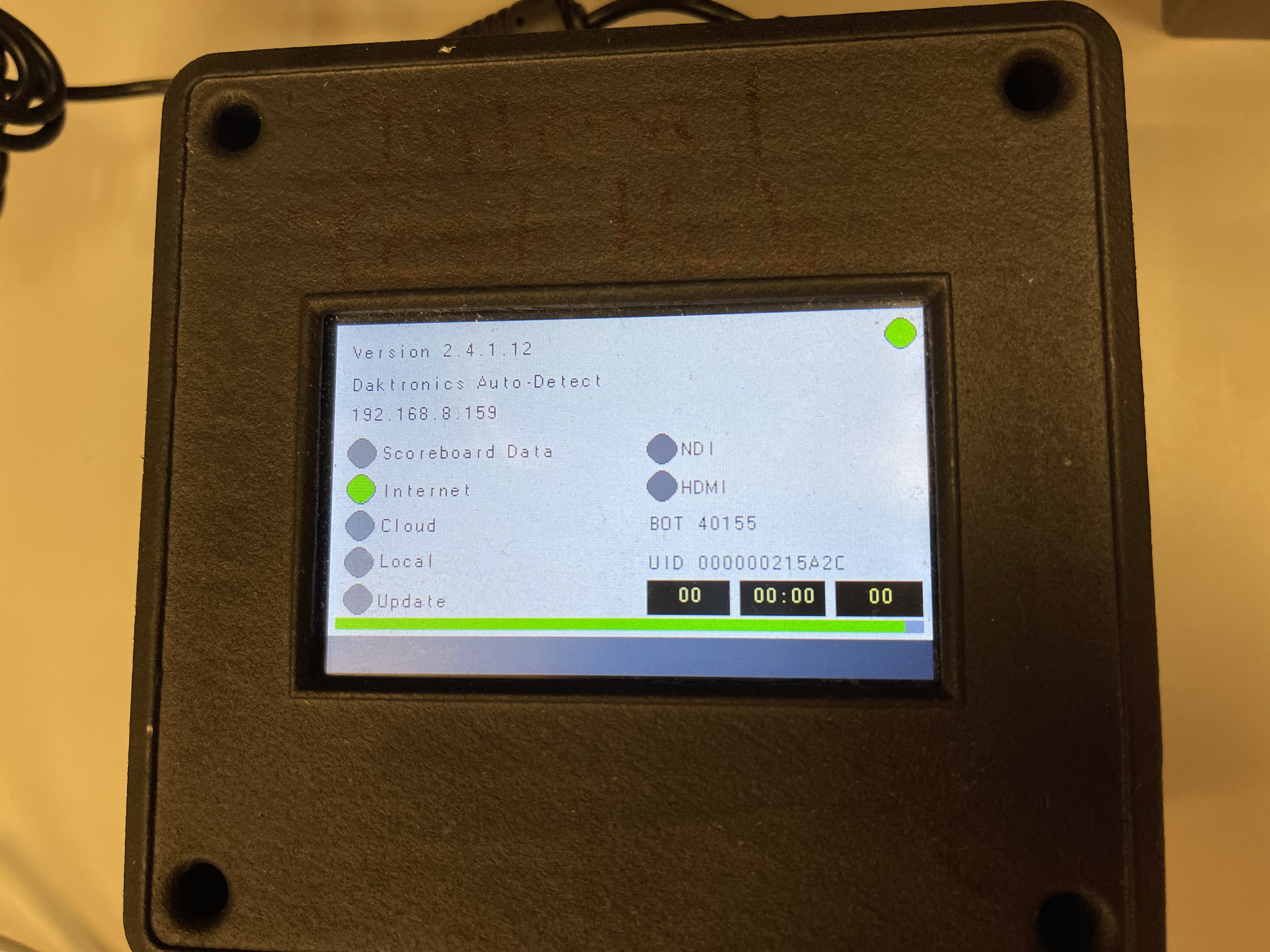

Once the Scorehub is up you will see a screen popup that looks as follows, you should see a green blinking dot in the top right corner.
-
Connect the Scorehub via Ethernet or if you want to setup WiFi click on the screen and go to page 17, it should say WiFi config, press and hold enter for 1 second till you get an edit carrot, then change it to a zero and press and hold for a second again, it will say DISCONNECTED, then you go to page 15 and scroll left and right till you find the desired SSID you want to select, once you find it press and hold enter until you get an edit carrot, then do it again and it will say SELECTED, once its selected you can go to page 16, enter in your password, and then go back to page 17 and change it to a 1 now and it should say CONNECTED
-
Once the Scorehub has an IP address, navigate on a device that's on the same network as its IP that is displayed on the screen in any web browser.
-

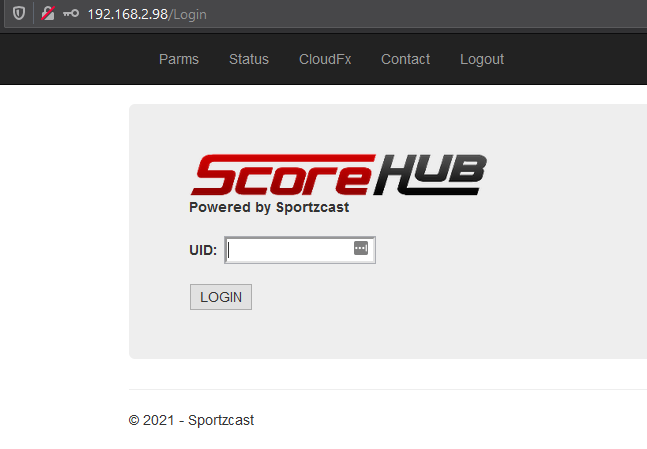

When you are at the IP address of the Scorehub you should be brought to a Scorehub webpage where it asks for your UID, that will be the last 4 digits of the UID on the screen of the Scorehub, once entered will allow you to change the settings on your Scorehub such as Scoreboard Manufacturer/Sport and other settings such as Static IPs, Wifi networks, CloudFX, etc.
