1. Phone status
- There will be new phones at the venue — they must be ready at least 24 hours before KO.
- The phones are already set up — turn them on at least 1 hour before the KO.
Important steps to always follow:
- The phone must be permanently connected to an AC charger, turned on and charged to 90% at least.
- The cooler fan must be connected and working.
- The phone must be connected to the Genius Live WIFI network. Also, make sure that it is within line-of-sight of the router.
2. Required apps
|
LISA (records and broadcasts the games) |
Host App (allows operators to control the phone remotely) |
Important: please refrain from using the phone for personal purposes such as social networks or anything that is not related to the streaming. Make sure that there are no other apps open in the background other than the aforementioned.

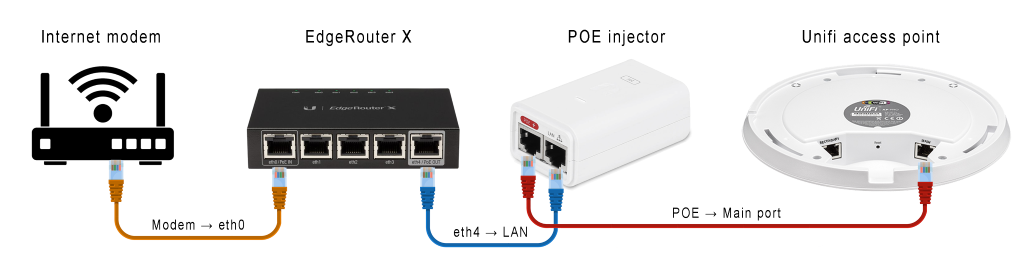

3. Accommodate wires
Connect the cables as described in the list bellow:
- Connect venues internet modem to "Edge router" via ethernet cable. Use ETH0 port.
- Connect "Edge router" to "Unifi POE" via ethernet cable. Connect ETH4 port to LAN port.
- Connect "Unifi POE" to "Unifi access point". Connect PEO port to Main port.
